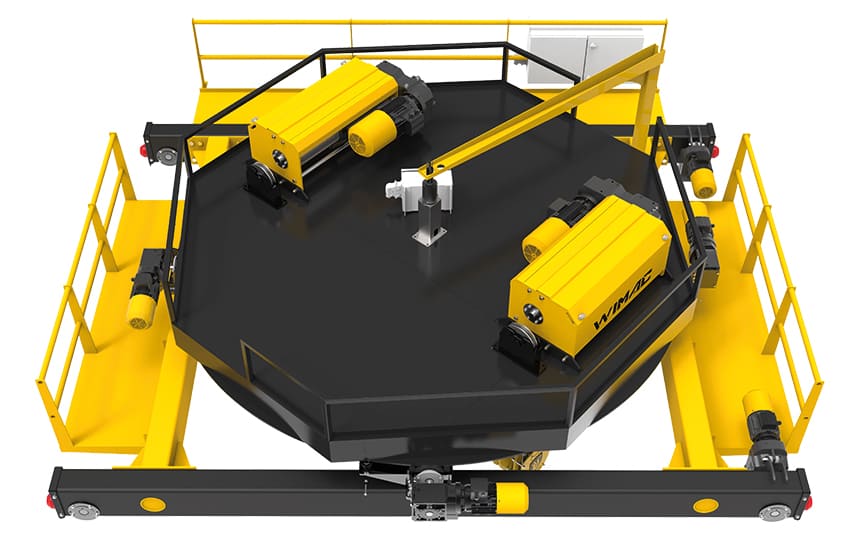

Поворотные машинные краны
Wimac крановые системы помогают вам легко и безопасно транспортировать и поднимать грузы с помощью наших крутящихся машинных кранов. С крановыми системами Wimac вы можете добиться высокой производительности даже в самых сложных условиях благодаря нашим легко монтируемым и удобным в использовании крутящимся машинным кранам.
Все производимые нами краны разработаны в соответствии с нормами FEM, DIN и ISO. Имея сертификаты CE и ISO, мы используем одинаковое качество и стандарты во всех наших изделиях.
Нашими крутящимися машинными кранами можно управлять с помощью систем дистанционного (пультового) управления. По U- и S-образным профилям они легко перемещаются и переносят груз. Они применяются там, где невозможно установить монорельсовые и мостовые краны, и обеспечивают наилучшую производительность. Кроме того, плавный пуск и торможение обеспечивают двигатели и редукторы, которые мы производим специально для наших кранов.
Наши поворотные машинные краны также проходят специальную грунтовку и окраску в зависимости от условий эксплуатации и защищены от коррозии по мировым стандартам.
Ключевые особенности и преимущества
Additional Information
- Rotation can be limited to specific angles or continuous 360°
- Optional encoder for precise positioning
- Available with magnetic or mechanical hooks
- Custom configurations available upon request
Heavy Duty Process Hoists
Wimac heavy duty hoists are purpose-built for the most demanding industrial applications including steel mills, foundries, and heavy manufacturing. These robust units handle extreme loads with precision and reliability.
Featuring twin drum configurations, multiple rope falls, and reinforced components, our heavy duty hoists deliver exceptional performance in high-temperature environments and continuous duty cycles. Custom engineered to meet specific process requirements.
Ключевые особенности и преимущества
Additional Information
- Available in ladle, charging, stripper, and casting configurations
- Heat shields and cooling systems for high-temperature applications
- Auxiliary hoists available for tilting and positioning
- Full engineering and installation support provided
Standard Monorail Hoist
Standard monorail hoist operates directly beneath the runway beam. The load and hoist weight are evenly balanced, eliminating the need for a counterweight and making this type of hoist lighter than a low headroom model.
Our standard monorail hoists feature advanced rope guide systems, high-efficiency motors, and robust gearboxes built to withstand continuous operation in demanding industrial environments. Available in capacities from 1.6 to 20 tons with lifting heights up to 12 meters.
Ключевые особенности и преимущества
Технические характеристики
| Capacity SWL (Ton) | Serial Number | Drum Diameter (mm) | Wire Diameter (mm) | Hook P Class | Trolley Weight (kg) | Lifting Speed (m/min) | Lifting Motor Power (kW) | Trolley Wheel Diameter (mm) | Trolley Wheel Bearings | Trolley Drive Motor Power (kW) | End Truck Wheel Diameter (mm) | End Truck Wheel Bearings | Cross Travel Motor Power (kW) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.6 | WO-S16 | 160 | 8 | Nr1 | 550 | 4 | 1.10 | Ø100 | 6205-2RS | 2×0,25 | Ø160-125 | 6308 | 2X0.55 |
| 3.2 | WO-S32 | 160 | 8 | Nr2.5 | 550 | 0,7-3,5 | 2.20 | Ø100 | 6205-2RS | 2×0,25 | Ø160-125 | 6308 | 2X0.55 |
| 5 | WO-S50 | 220 | 10 | Nr4 | 600 | 4 | 4 | Ø130 | 6206-2RS | 2×0,37 | Ø200-170 | 6310 | 2x0.55 |
| 6.3 | WO-S63 | 220 | 12 | Nr4 | 750 | 4.3 | 5.5 | Ø160 | 6207-2RS | 2×0,37 | Ø200-170 | 6310 | 2x0.75 |
| 8 | WO-S80 | 270 | 14 | Nr5 | 800 | 3.5 | 5.5 | Ø160 | 6207-2RS | 2×0,55 | Ø200-170 | 6310 | 2X0.75 |
| 10 | WO-S100 | 270 | 14 | Nr6 | 1000 | 3.5 | 7.5 | Ø160 | 6207-2RS | 2×0,55 | Ø240-200 | 22210 | 2x11 |
| 12.5 | WO-S125 | 360 | 16 | Nr8 | 1250 | 4.1 | 11.0 | Ø200 | 6209-2RS | 2×0,75 | Ø240-200 | 22210 | 2x11 |
| 16 | WO-S160 | 360 | 18 | Nr10 | 1500 | 3.5 | 11.0 | Ø300 | 6213-2RS | 2×0,75 | Ø300-250 | 22212 | 2x15 |
| 20 | WO-S200 | 400 | 20 | Nr12 | 1750 | 3.9 | 15.0 | Ø300 | 6213-2RS | 2×1,1 | Ø300-250 | 22212 | 2X2.2 |
The products specified in the table above are compatible with FEM M5 & ISO 2m standards.
Additional Information
- The static test load is SWL × 1.25 / dynamic test load is SWL × 1.10
- The products above have a lifting height between 6 and 12 meters
- The products above have a long travel speed of 30 m/min & a cross travel speed of 20 m/min
- Module and number of teeth to be stated with order. Tooth form according to DIN 867 without profile correction. Pressure angle 20 degree.
Low Headroom Monorail Hoist
A low headroom hoist is the ideal solution for buildings with limited height. It maximizes space efficiency by allowing the hook to reach almost directly beneath the beam. Compared to a standard hoist, this design optimizes building height without compromising performance.
The offset drum design and compact configuration make these hoists perfect for retrofitting existing facilities or new constructions where ceiling height is at a premium. Available in capacities from 1.6 to 10 tons.
Ключевые особенности и преимущества
Технические характеристики
| Capacity SWL (Ton) | Serial Number | Drum Diameter (mm) | Wire Diameter (mm) | Hook P Class | Trolley Weight (kg) | Lifting Speed (m/min) | Lifting Motor Power (kW) | Trolley Wheel Diameter (mm) | Trolley Wheel Bearings | Trolley Drive Motor Power (kW) | End Truck Wheel Diameter (mm) | End Truck Wheel Bearings | Cross Travel Motor Power (kW) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.6 | WU-S 16 | 160 | a8 | Nr1 | 550 | 4 | 1.10 | Ø100 | 6205-2RS | 2 x 0,25 | Ø130 | 6206 | 2x0,55 |
| 3.2 | WU-S 32 | 160 | 8 | Nr2.5 | 550 | 0.7-3.5 | 2.20 | Ø100 | 6205-2RS | 2 x 0,25 | Ø130 | 6206 | 2x0,55 |
| 5 | WU-S 50 | 220 | 10 | Nr4 | 600 | 4 | 4 | Ø130 | 6206-2RS | 2 x 0,37 | Ø160 | 6207 | 2x0,55 |
| 6.3 | WU-S 63 | 220 | 12 | Nr4 | 750 | 4.3 | 5.5 | Ø160 | 6207-2RS | 2 x 0,37 | Ø200 | 6209 | 2x0,75 |
| 8 | WU-S 80 | 270 | 14 | Nr5 | 800 | 3.5 | 5.5 | Ø160 | 6207-2RS | 2 x 0,55 | Ø300 | 6213 | 2x0,75 |
| 10 | WU-S 100 | 270 | 14 | Nr6 | 1000 | 3.5 | 7.5 | Ø160 | 6207-2RS | 2 x 0,55 | Ø300 | 6213 | 2x1,1 |
The products specified in the table above are compatible with FEM M5 & ISO 2m standards.
Additional Information
- The static test load is SWL × 1.25 / dynamic test load is SWL × 1.10
- The products above have a lifting height between 6 and 12 meters
- The products above have a long travel speed of 30 m/min & a cross travel speed of 20 m/min
- Module and number of teeth to be stated with order. Tooth form according to DIN 867 without profile correction. Pressure angle 20 degree.
Explosion-Proof Wire Rope Hoists
Wimac explosion-proof hoists are ATEX certified for safe operation in hazardous environments where explosive gases, vapors, or dust may be present. Every component is designed and certified to prevent ignition sources in classified areas.
Our Ex-proof hoists comply with ATEX Directive 2014/34/EU and are available for Zone 1, Zone 2, Zone 21, and Zone 22 applications. Ideal for oil & gas, chemical processing, pharmaceutical, and grain handling industries. With flameproof motor enclosures, increased safety junction boxes, and intrinsically safe control circuits, these hoists provide reliable lifting solutions in the most demanding hazardous environments.
